1-18GHz Diplexer (DPX-1R8G)

← Back to Diplexers

Product image

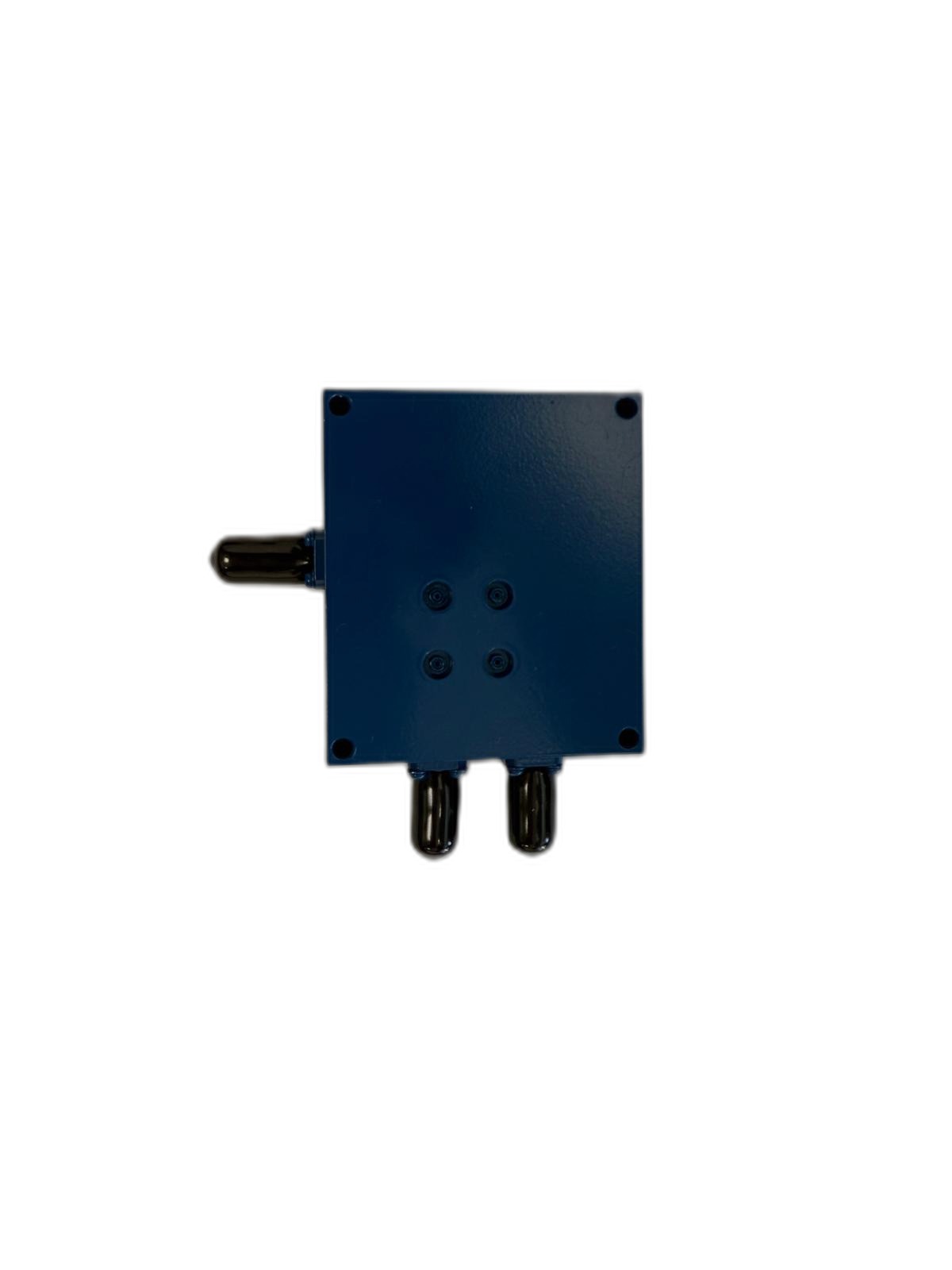

Broadband 1–18 GHz diplexer with a 1.8 GHz crossover, splitting the band into a low channel (1.1–1.6 GHz) and a high channel (2.0–18 GHz).

Electrical Specifications
Operating frequency 1 – 18.0 GHz
-1.0 dB bandwidth CH1: 1.1 – 1.6 GHz; CH2: 2.0 – 18.0 GHz
Insertion loss < 1.35 dB (< 1.5 dB over temperature)
Crossover 1.8 GHz ±0.5% @ 25°C
Crossover loss < 5.5 dB @ 25°C; < 6.0 dB @ -20°C to +60°C
VSWR < 2.0
Rejection CH1 ≥ 60 dB @ DC – 0.5 GHz and 2.3 – 18 GHz
Rejection CH2 ≥ 60 dB @ DC – 1.5 GHz
Maximum power ≥ 2 W CW
In / out impedance 50 Ω
Mechanical
Connectors SMA female
Material Aluminum
Surface finish Blue paint
