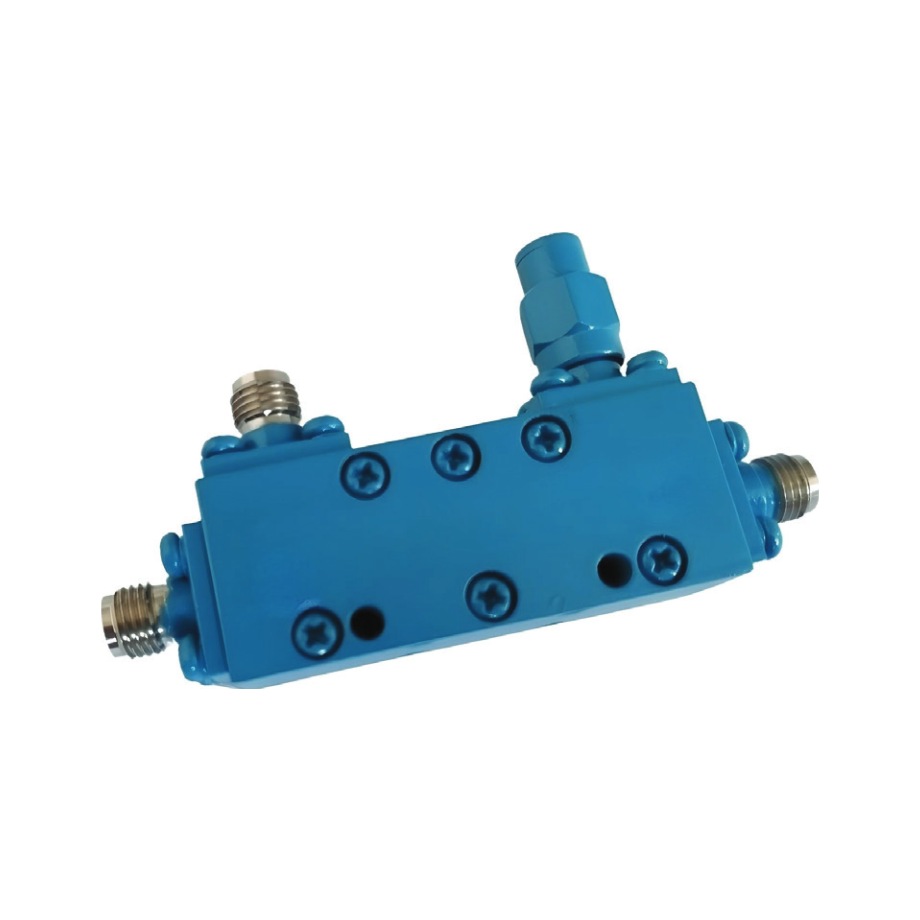

Broadband 10 dB directional coupler covering 18–40 GHz, with 2.92 mm female connectors.
| Electrical Specifications | |
|---|---|
| Frequency range | 18 – 40 GHz |
| Insertion loss (true) | 1.5 dB max |
| Coupling | 10 dB ±0.7 dB |
| VSWR (input) | 1.7:1 |
| Frequency flatness | ±0.7 dB max |
| Directivity | 12.0 dB min |
| Power handling | 20 W average max; 1 kW peak max |
| In / out impedance | 50 Ω |
| Mechanical | |
| Connectors | 2.92 mm female |
| Case material | Aluminum alloy |
| Surface finish | Epoxy paint |
| Environmental | |
| Operating temperature | -45°C to +85°C |
| Storage temperature | -54°C to +105°C |
