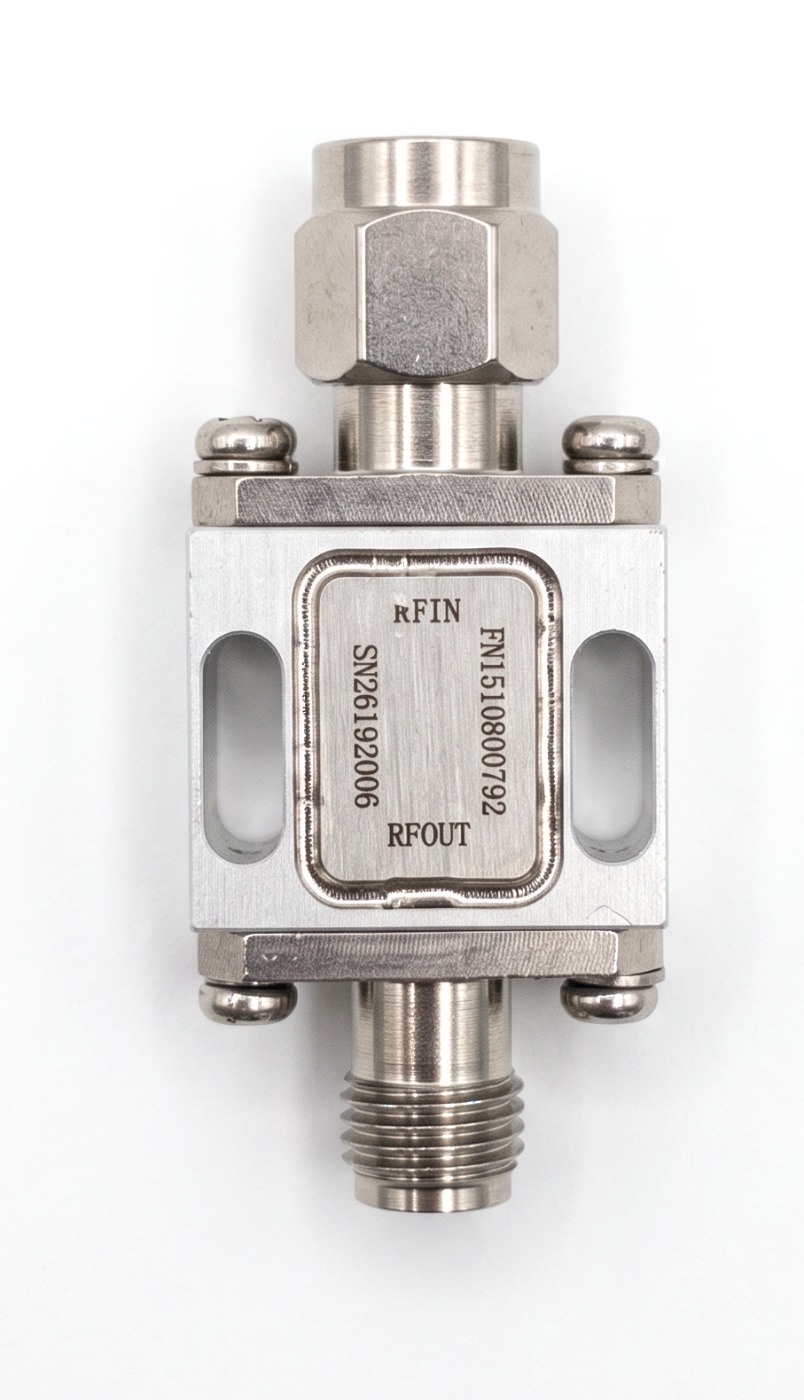

Broadband RF limiter covering 2–18 GHz, protecting sensitive receiver front ends from high-power input, with SMA connectors.
| Electrical Specifications (@ +25°C) | |
|---|---|
| Operating frequency | 2 – 18 GHz |
| Input power | 1 W max CW; 100 W max peak (1 µs pulse width, 0.1% duty cycle) |
| Flat leakage | 18 dBm max CW; 21 dBm max peak |
| Insertion loss | ≤ 1.8 dB (at input power = -10 dBm) |
| VSWR | ≤ 1.9:1 (at input power = -10 dBm) |
| Mechanical & Environmental | |
| Connectors | Input: SMA male (removable); Output: SMA female (removable) |
| Finish | Alodine and laser sealing |
| Operating temperature | -55°C to +125°C |
| Storage temperature | -65°C to +150°C |
| Power Notes | |
| CW leakage | Typically measured at mid-band with 1 W input |
| Higher power handling | Available – contact us to discuss specific requirements |
| Derating | Power handling is derated linearly from full power at +25°C to zero power at +150°C |
