4-way, in-phase (0°) power divider covering 0.5–2 GHz with SMA-female connectors.
| Electrical Specifications | |
|---|---|
| Frequency range | 0.5 – 2 GHz |
| Insertion loss | 0.7 dB max |
| Isolation | 20 dB min |
| VSWR | Input 1.30:1; output 1.20:1 |
| Power handling | Forward 20 W max; reverse 1.0 W max |
| Unbalance | Phase ±2.5° max; amplitude ±0.2 dB max |
| In / out impedance | 50 Ω |
| Mechanical & Environmental | |
| Connectors | Stainless steel SMA female |
| Case material | Aluminum alloy |
| Surface finish | Black paint |

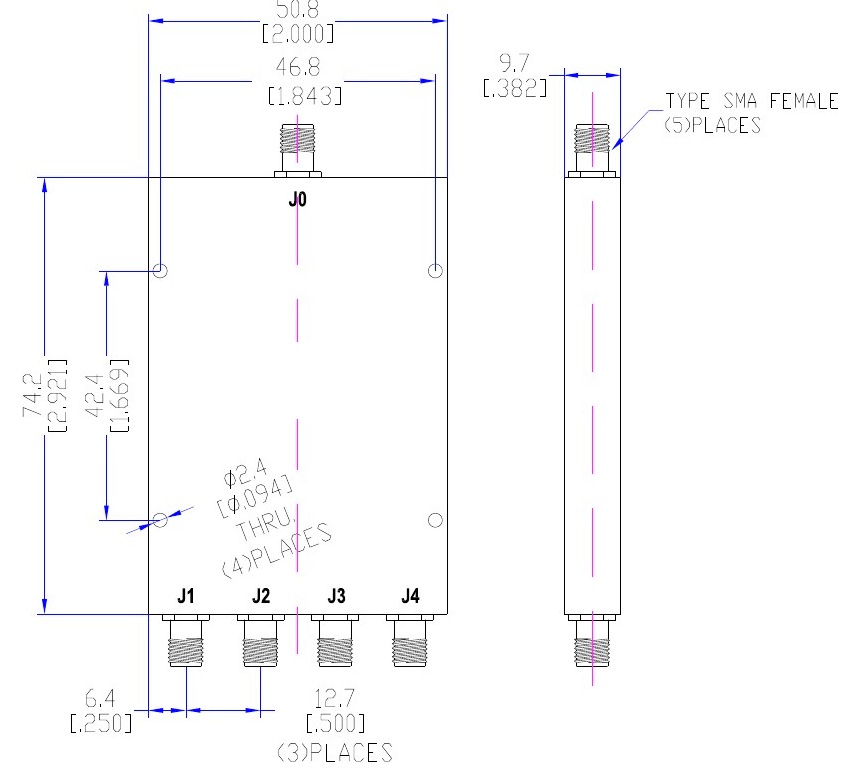

| Dimensions | 74.2 × 50.8 mm, thickness 9.7 mm (tolerance ±0.2 mm) |
| Operating temperature | -45°C to +85°C |
| Storage temperature | -54°C to +105°C |
