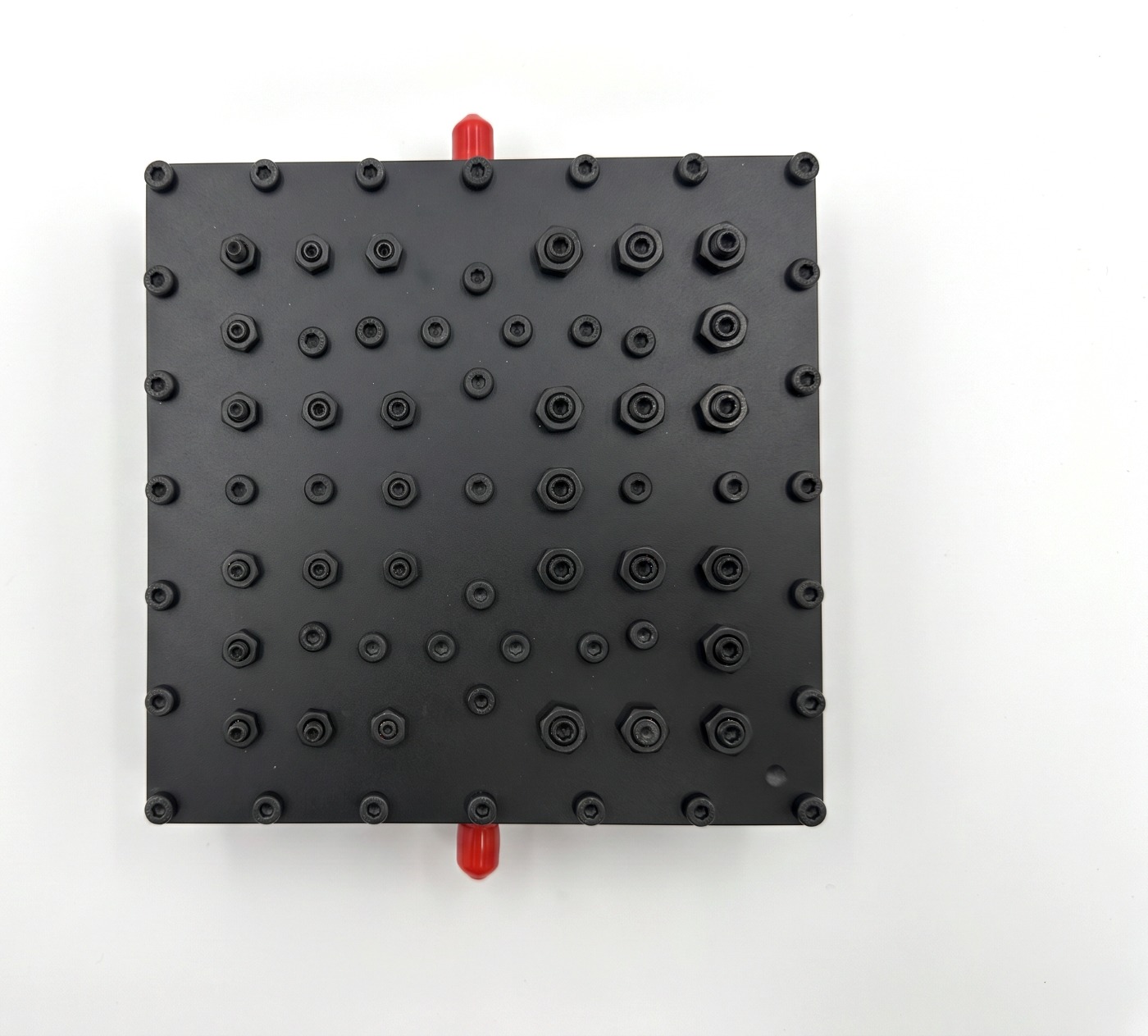

Cavity dual pass-band filter with two pass bands, 860–930 MHz and 2400–2500 MHz, and high stop-band rejection.
| Electrical Specifications (CH1 / CH2) | |
|---|---|
| Center frequency (F0) | 895 MHz / 2450 MHz |
| Pass band frequency | 860 – 930 MHz / 2400 – 2500 MHz |
| Pass band insertion loss | ≤ 1.2 dB / ≤ 1.2 dB |
| Pass band ripple | ≤ 0.6 dB / ≤ 0.6 dB |
| Pass band return loss | ≥ 18 dB / ≥ 18 dB |
| Stop band rejection | ≥ 60 dB @ DC – 810 MHz, 980 – 2330 MHz, 2570 – 3500 MHz |
| Impedance | 50 Ω |
| Power | 20 W max |
| Temperature range | -30°C to +70°C |
| Mechanical | |
| Input / output connectors | SMA female (50 Ω) |
| Dimensions (L × W × H) | 105 × 105 × 39.5 mm |
| Mounting | 4 × M3, depth 6 mm (99 × 99 mm hole pattern) |
| Surface finish | Black painted |
| RoHS | Yes |
| Environmental | |
| Operating temperature | -30°C to +70°C |
| Storage temperature | -55°C to +85°C |
| Environment class | IP65 |
| Altitude | 30,000 ft (epoxy sealed, controlled environment) |
| Humidity | 95% RH at 35°C |
| Shock | 20 G for 11 ms half-sine, 3 axes, both directions |
