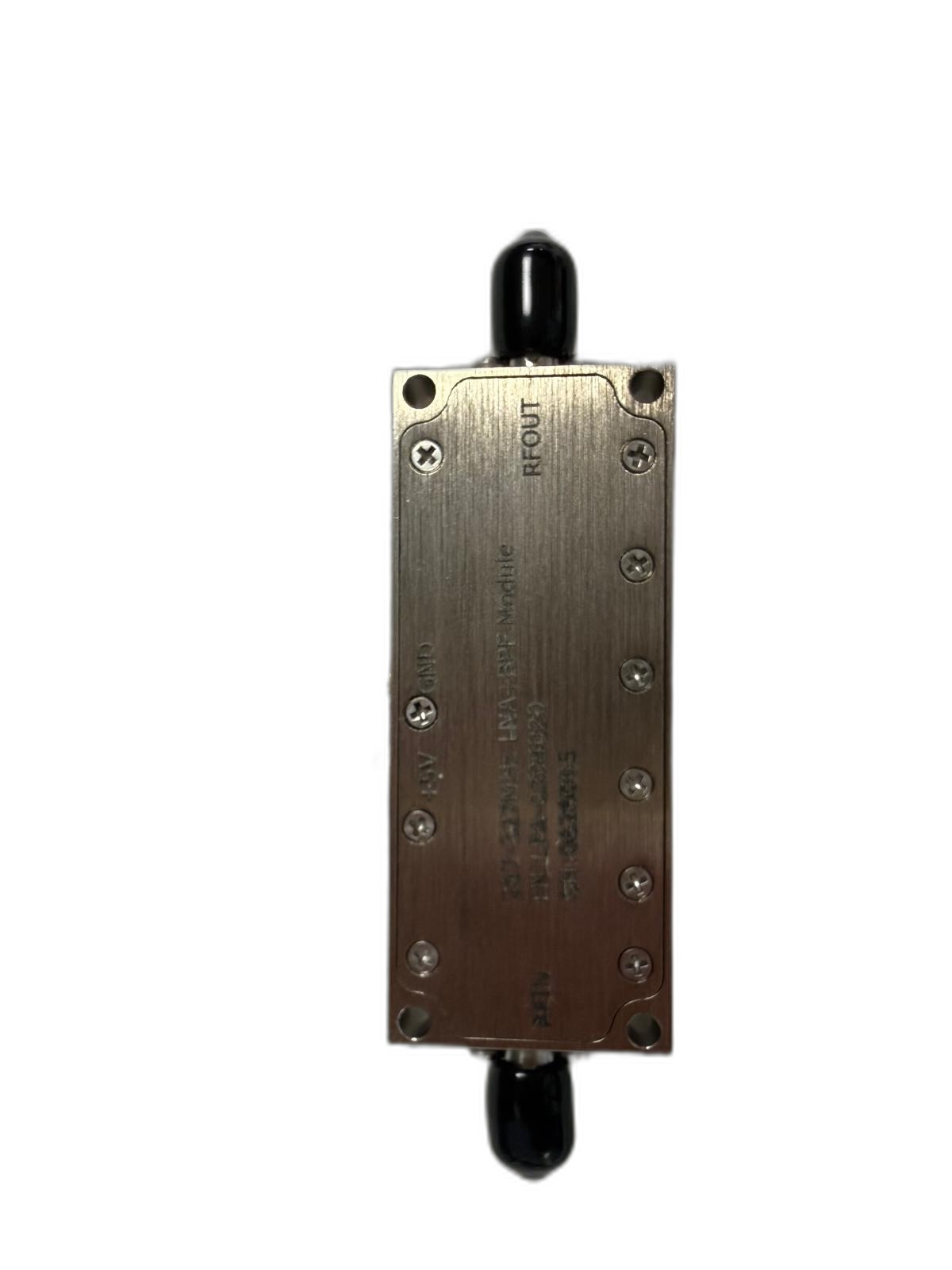

Combined low-noise amplifier and band-pass filter module for 267–327 MHz, with integrated filtering for strong rejection of out-of-band signals.
| Electrical Specifications | |
|---|---|
| Frequency | 267 – 327 MHz |
| Gain | ≥ 20 dB |
| Noise figure | ≤ 3.0 dB |
| Output P1dB | ≥ +18 dBm |
| Band-pass filter | 267 – 327 MHz |
| Rejection | 40 dB at 200 MHz and 500 MHz; 40 dB at 148 MHz |
| Power supply | +5 VDC |
| Mechanical | |
| Dimensions | 60 × 25 × 12 mm max |
| RF input / output connectors | SMA female |
| Environmental (design to meet) | |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -55°C to +100°C |
| Relative humidity (non-condensing) | 95% max |
