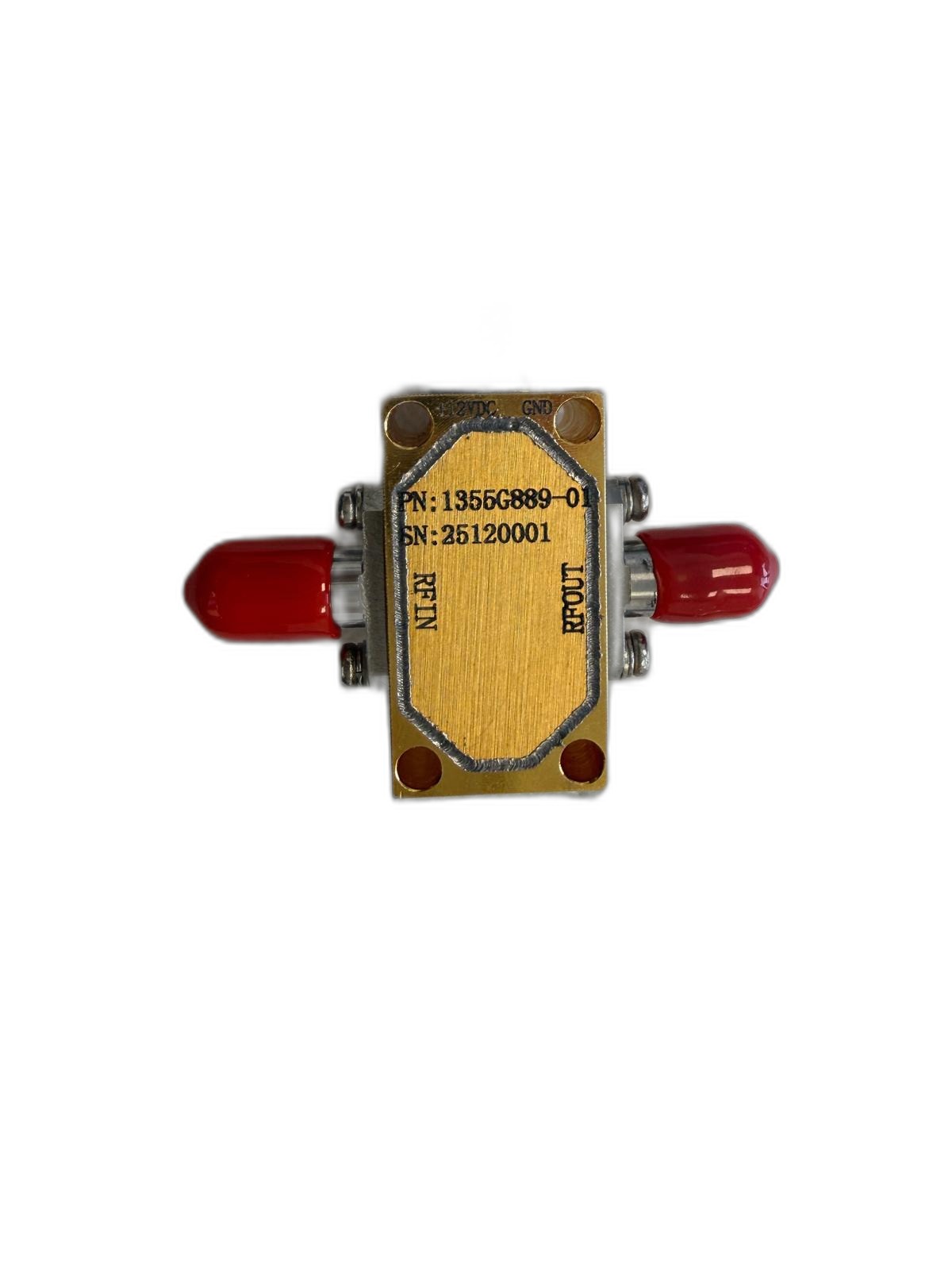

Broadband low-noise amplifier covering 2–18 GHz, with 15–20 dB gain, noise figure as low as 3.0 dB, and output P1dB up to 27 dBm. Operates from a +12 V supply.
| Electrical Specifications (@ 50 Ω, 25°C) | |
|---|---|
| Operating frequency | 2 – 18 GHz |
| Small-signal gain | 15 dB min; 16 dB typ; 20 dB max |
| Noise figure | 2 – 3 GHz: 5.0 dB max 3 – 14 GHz: 3.0 dB typ; 4.0 dB max 14 – 18 GHz: 3.0 dB typ; 4.5 dB max |
| Gain flatness | ±1.2 dB |
| Gain variation over temperature | ±1.2 dB |
| Output P1dB | 2 – 16 GHz: 23 dBm min; 24 typ; 27 max 16 – 18 GHz: 21.5 dBm min; 23 typ; 27 max |
| Input / output VSWR | 1.8 typ; 2.0 max |
| Maximum input power | +19 dBm |
| Power Supply | |
| Voltage | +10 / +12 / +15 V (min / typ / max) |
| Current | 170 mA typ |
| Absolute maximum voltage | 16 V |
| Environmental | |
| Operating temperature | -35°C to +70°C |
| Storage temperature | -45°C to +85°C |
