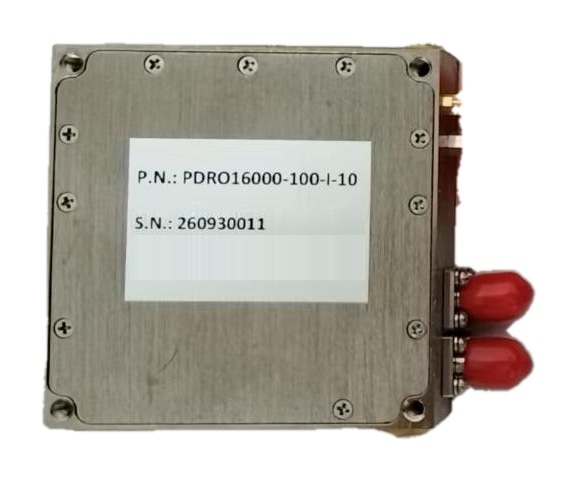

Phase-locked dielectric resonator oscillator (PDRO) – 16 GHz, dual RF output.
| Electrical Specifications | |
|---|---|
| Output frequency | 16 GHz |
| Number of outputs | 2 (RFOUT1, RFOUT2) |
| Output power RFOUT1 | ≥ -10 dBm (full temperature range) |
| Output power RFOUT2 | ≥ +13 dBm (+15 dBm typ) |
| Output VSWR | ≤ 1.5:1 |
| Internal reference stability | ≤ ±0.9 ppm over temperature |
| Internal reference accuracy | ≤ ±0.5 ppm @ +25°C |
| Harmonics | -40 dBc typ; ≤ -30 dBc |
| Spurious | -80 dBc typ; ≤ -70 dBc |
| Subharmonics | -50 dBc typ; ≤ -40 dBc |
| Phase lock alarm | TTL: High = locked, Low = unlocked |
| Supply voltage | +12V ±1V DC |
| Current consumption | 400 mA typ; 450 mA max @ +12V DC |
| SSB Phase Noise (dBc/Hz) | |
| @ 100 Hz | -72 typ; ≤ -66 |
| @ 1 kHz | -95 typ; ≤ -89 |
| @ 10 kHz | -104 typ; ≤ -98 |
| @ 100 kHz | -110 typ; ≤ -105 |
| @ 1 MHz | -135 typ; ≤ -129 |
| Environmental & Mechanical | |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -40°C to +80°C |
| RF connectors | SMA female |
| Supply & alarm connectors | Filtered feedthrough |
| Ground | Solder terminal |
| Enclosure | Nickel-plated milled aluminum (IP40) |
