PIN Diode Detector (10.3-10.5GHz)

← Back to Detectors

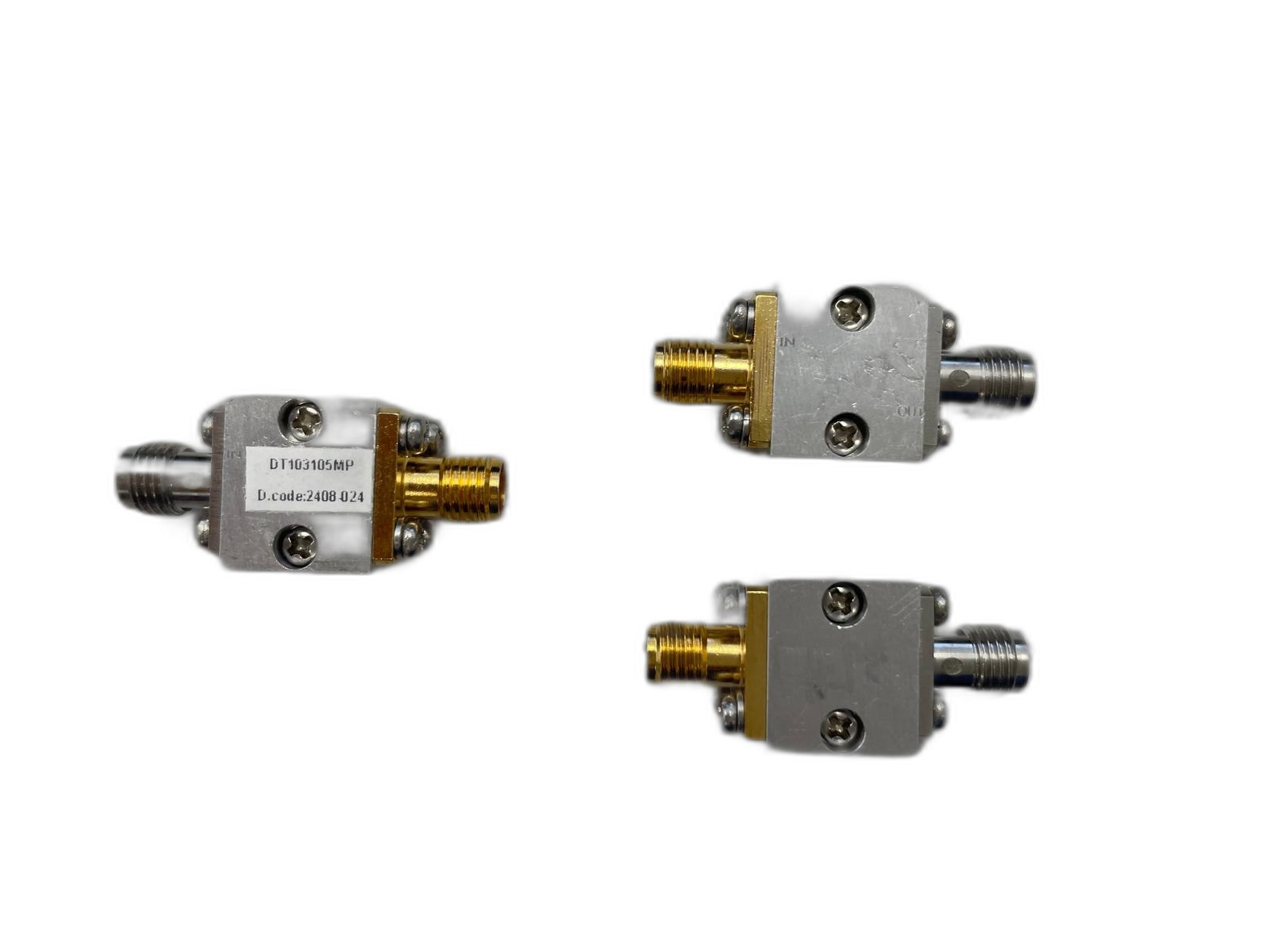

Product image

High-sensitivity PIN diode detector for 10.3–10.5 GHz, with excellent flatness and field-removable SMA connectors.

Electrical Specifications (@ 25°C)
Frequency range 10.3 – 10.5 GHz
Sensitivity (K) 650 mV/mW min
Flatness ±0.2 dB
TSS -50 dBm max
VSWR 2:1 max
Maximum input power +15 dBm
Mechanical & Environmental
Connector SMA female, field removable
Operating temperature -40°C to +85°C
