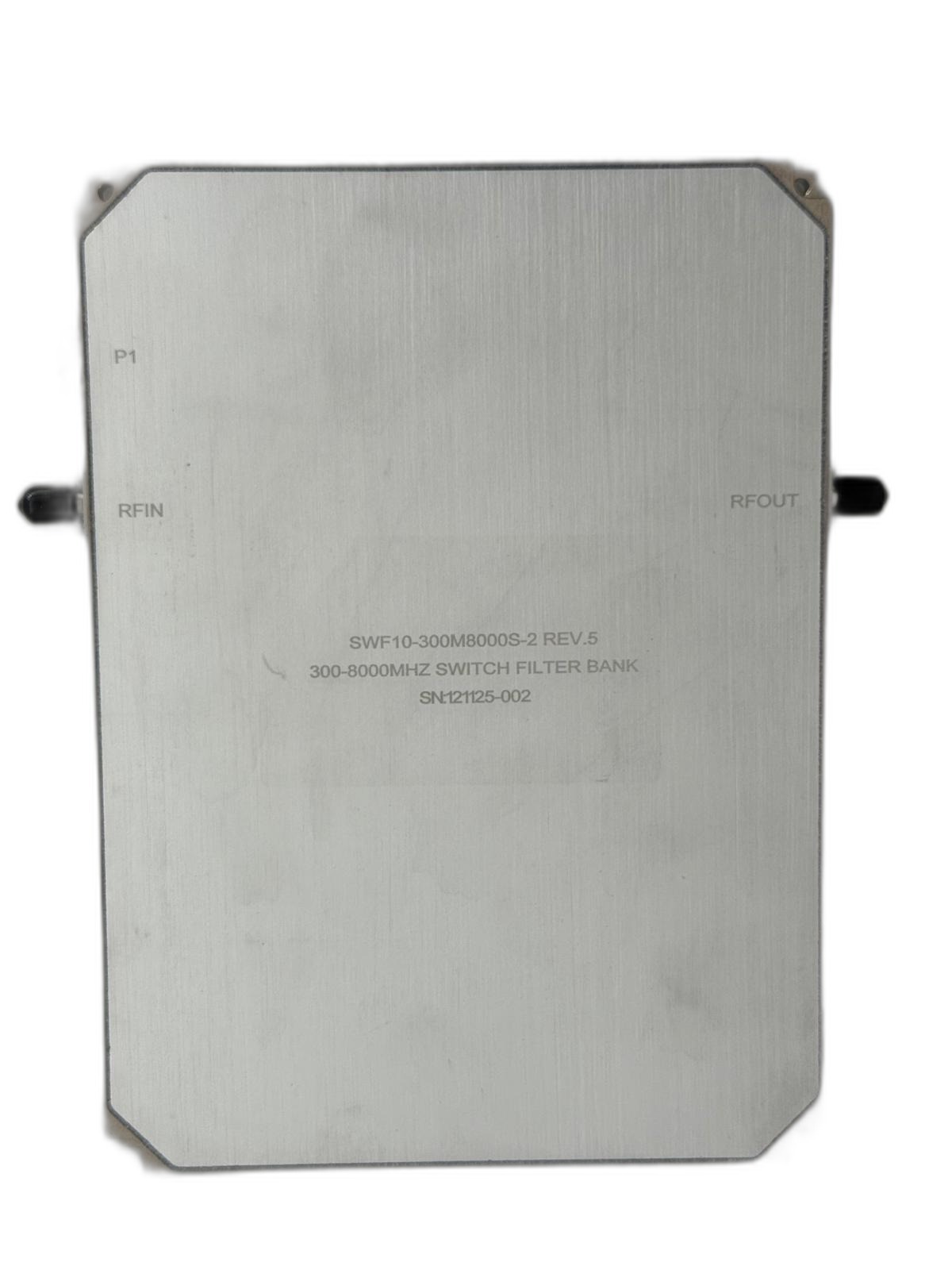

Switch Filter Bank (300-8000MHz)

← Back to Switched Filter Banks

300–8000 MHz switched filter bank with 11 channels (9 band-pass filters, 1 high-pass filter and 1 bypass path), TTL-controlled, with 200 ns switching time.

General Specifications

Frequency range

300 – 8000 MHz

Passband insertion loss

≤ 7 dB

Impedance

50 Ω

Switch time

≤ 200 ns

Maximum RF input power

+27 dBm

Input P1dB

300 – 580 MHz: ≥ +20 dBm; 600 – 930 MHz: ≥ +21.5 dBm; 1000 – 8000 MHz: ≥ +23 dBm

3rd-order intercept

≥ 32 dBm (5 dBm per tone, 5 MHz spacing)

Spurious

Without RF: ≤ -80 dBm; with -20 dBm RF: ≥ -45 dBc

Video leakage

≤ -30 dBm (after switching time)

Channel Specifications

Channel	Band	Insertion loss	Ripple	Return loss
CH1	300 – 600 MHz	3.5 dB	–	-13 dB
CH2	600 – 1000 MHz	2.0 dB	±1 dB	-13 dB
CH3	902 – 928 MHz	3.2 dB	±1.5 dB	-13 dB
CH4	970 – 1700 MHz	2.5 dB	±1.25 dB	-13 dB
CH5	1700 – 2400 MHz	2.0 dB	±1 dB	-13 dB
CH6	2400 – 2500 MHz	2.0 dB	±1 dB	-13 dB
CH7	2400 – 3100 MHz	2.0 dB	±1 dB	-13 dB
CH8	3100 – 4400 MHz	2.0 dB	±1 dB	-13 dB
CH9	4400 – 5450 MHz	1.5 dB	±0.5 dB	-13 dB
CH10 (high-pass)	5450 – 8000 MHz	2.5 dB	±1.25 dB	-13 dB
CH11 (bypass)	300 – 8000 MHz	1.0 dB	±0.75 dB	-13 dB

Power, Control & Interfaces

Supply

+5 V ±10%, ≤ 400 mA; -5 V ±10%, ≤ 200 mA

Control

TTL lines C0 – C3; control connector P1: 9-pin micro-miniature rectangular (MIL-C-83513)

Pinout

1: +5 V; 2: -5 V; 3: GND; 4: C0; 5: C1; 6: C2; 7: C3; 8: GND; 9: GND

RF connectors

SMA female, stainless steel

Surface finish

Nickel plated

No-damage condition

Power supply reverse polarity; any combination of supply voltage at power on / off

Environmental

Operating temperature

-40°C to +70°C

Storage temperature

-40°C to +85°C

Shock

20 g, 11 ms
