WRD650 to TNC-F Adapter

← Back to Waveguide Adapters

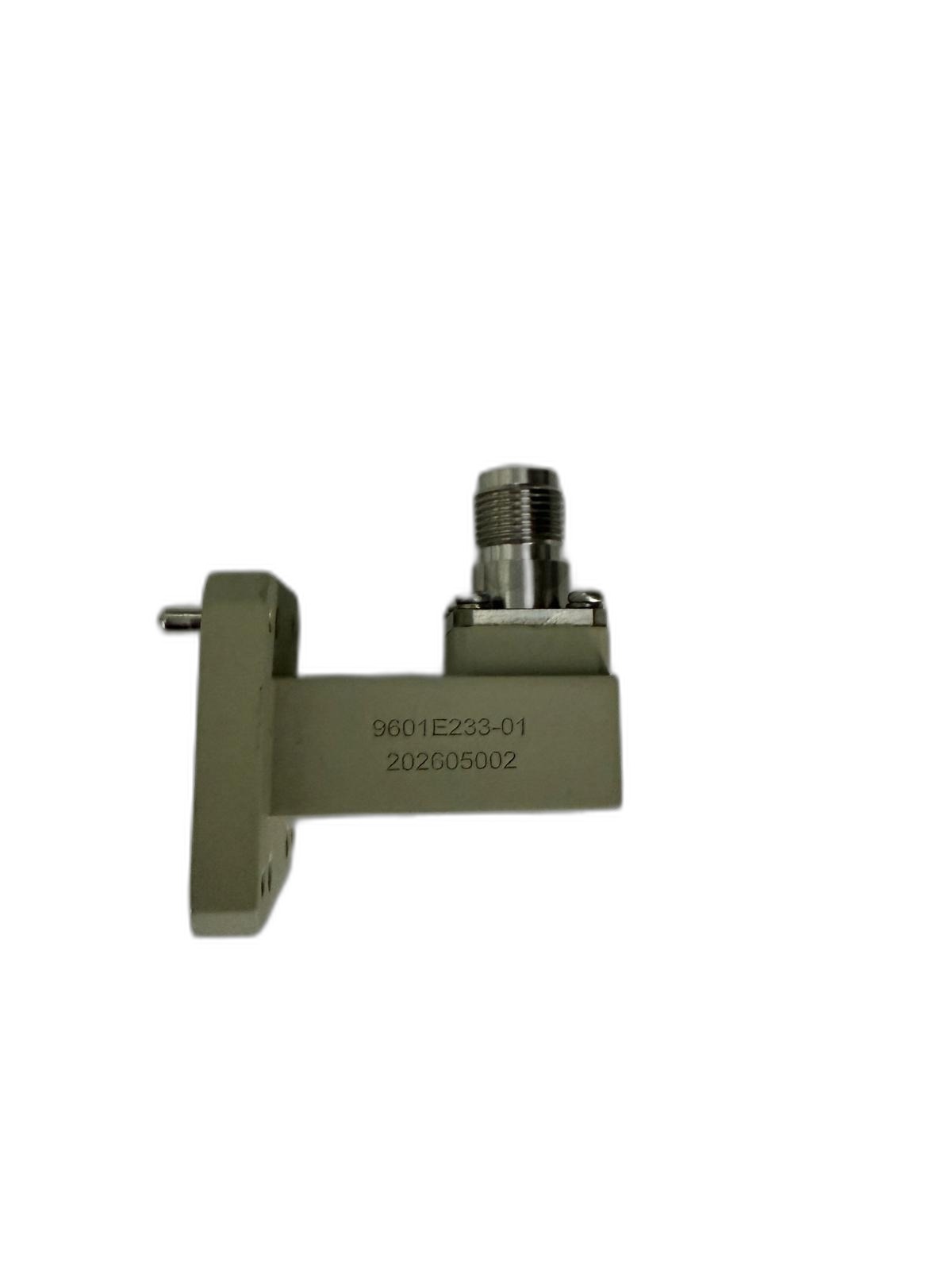

Product image

Waveguide-to-coax transition adapter covering the full 6.5–18 GHz band, with low VSWR and rugged aluminum construction.

Electrical Specifications
Frequency range 6.5 – 18 GHz
VSWR 1.5:1 max
Insertion loss 0.5 dB typ
Average power (CW) 10 W
Mechanical & Environmental
Waveguide WRD650
Coaxial connector TNC female
Flange type Cover
Material Aluminum
Finish Alodine, surface RAL 7032
Operating temperature -20°C to +60°C

Request a Quote / Datasheet

Request a Quote or Datasheet

Tell us what you need and we will reply by email. You can also call +972-3-9067155 or write to sales@rmsl-tech.com.

    Call Request a quote
